Hepa Filters

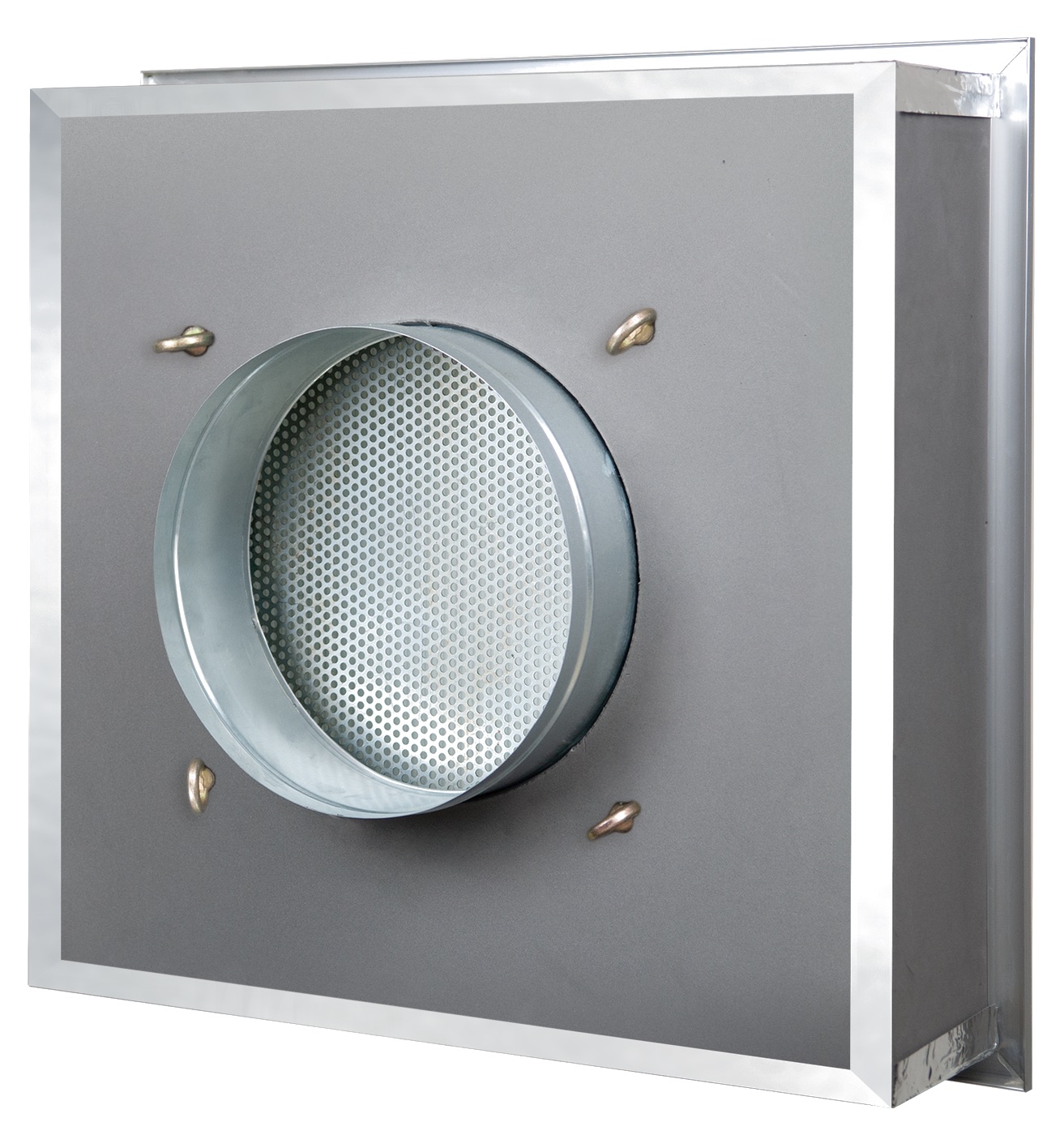

HEPA Room Side Replaceable Filters (RSR)
Specifications
- Frame: Extruded aluminum
- Media: Glass fiber
- Efficiency:
- H10 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥85% / DOP: ≥95%@0.3 μm
- H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥95% / DOP: ≥99.9%@0.3 μm
- H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Hot melt
- Sealant: Polyurethane (PU)
- Flame Retardant Grade: UL900
- Max. Temperature: ≦ 70°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 500 Pa
Advantages
- Cost & energy saving
- High humidity resistance
- Interlock design on gasketing to secure the airflow without leaking
- Easy to assemble with the continuous bead collar
- Easy for the indoor installation without removing the housing
- Light weight design
- Also available in non-standard sizes
Applications
- Designed for being applied in the cleanroom partitions, light weight ceiling, TEE-Bar, etc. The room side replaceable module is an ideal terminal filter hood for pharmaceutical and biotech cleanrooms.
Features
- Replaceable module can combine with FFU system one used in a positive-pressure clean room. The room side replaceable ducted filter module is a perma- nent medium to high efficiency. The unit is manufactured by aluminum or stainless steel. Custom designed units are available for specific requirements.
For More Information and Custom Services, Please Feel Free to Contact Us.
