Hepa Filters

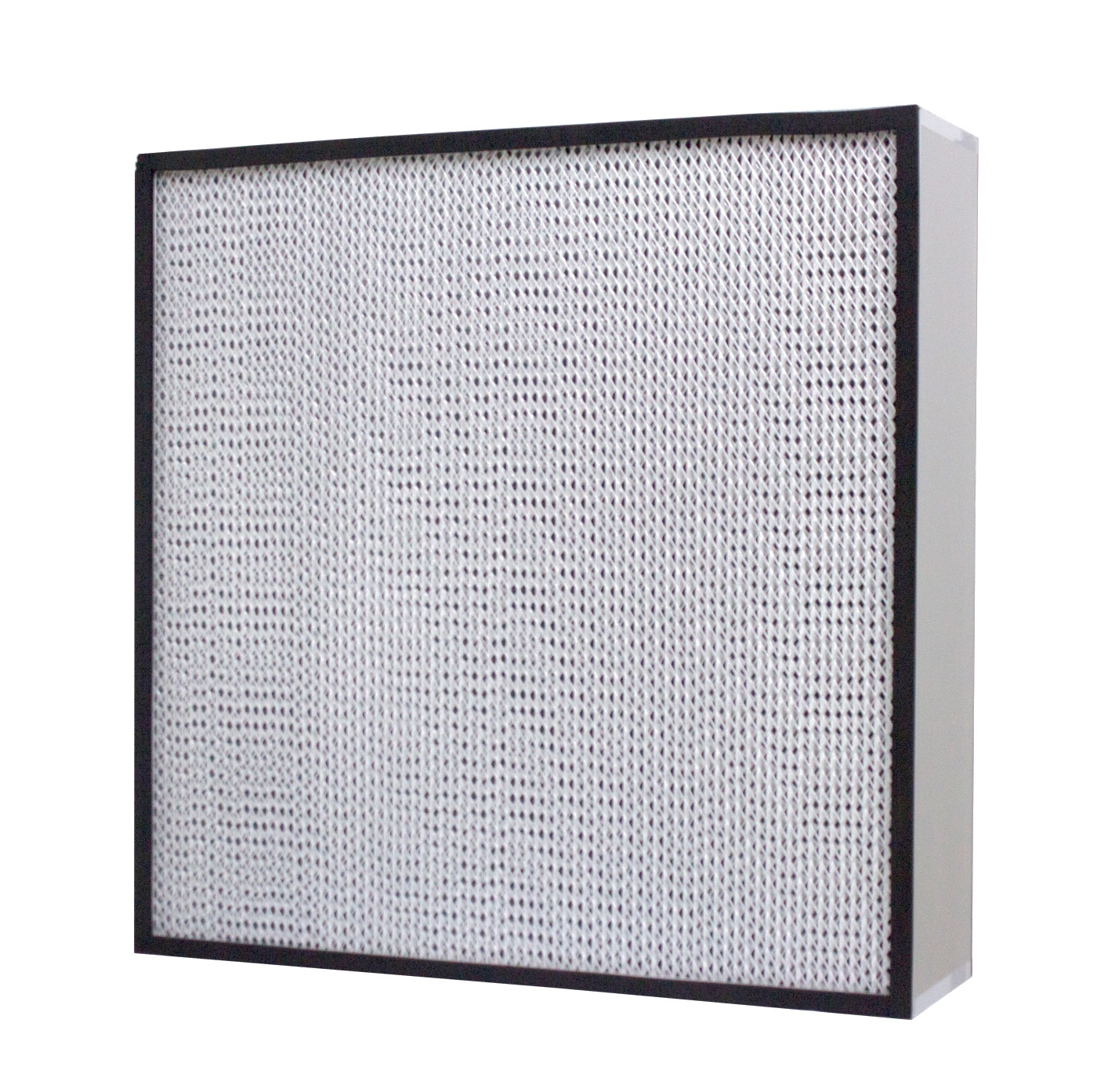

HEPA Mini-Pleat Filters for Clean Room
Specifications
- Frame: Extruded aluminum, Galvanized
- Media: Glass fiber
- Efficiency:
- H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥95% / DOP: ≥99.9%@0.3 μm
- H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Hot melt
- Sealant: Polyurethane (PU)
- Flame Retardant Grade: UL900
- Max. Temperature: ≦ 70°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 500 Pa
Advantages
- Lower pressure drop
- Energy saving
- Lightweight & easy to install
- Interlock design on gasketing to secure the airflow without leaking
Applications
- Designed for being applied and optimized the applications, such as health care, commercial, educational and industrial buildings.
For More Information and Custom Services, Please Feel Free to Contact Us.
