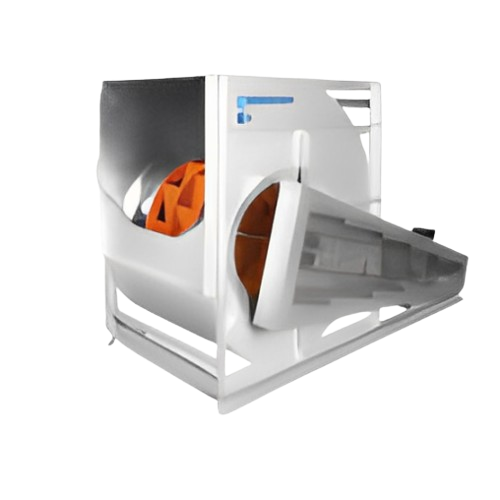

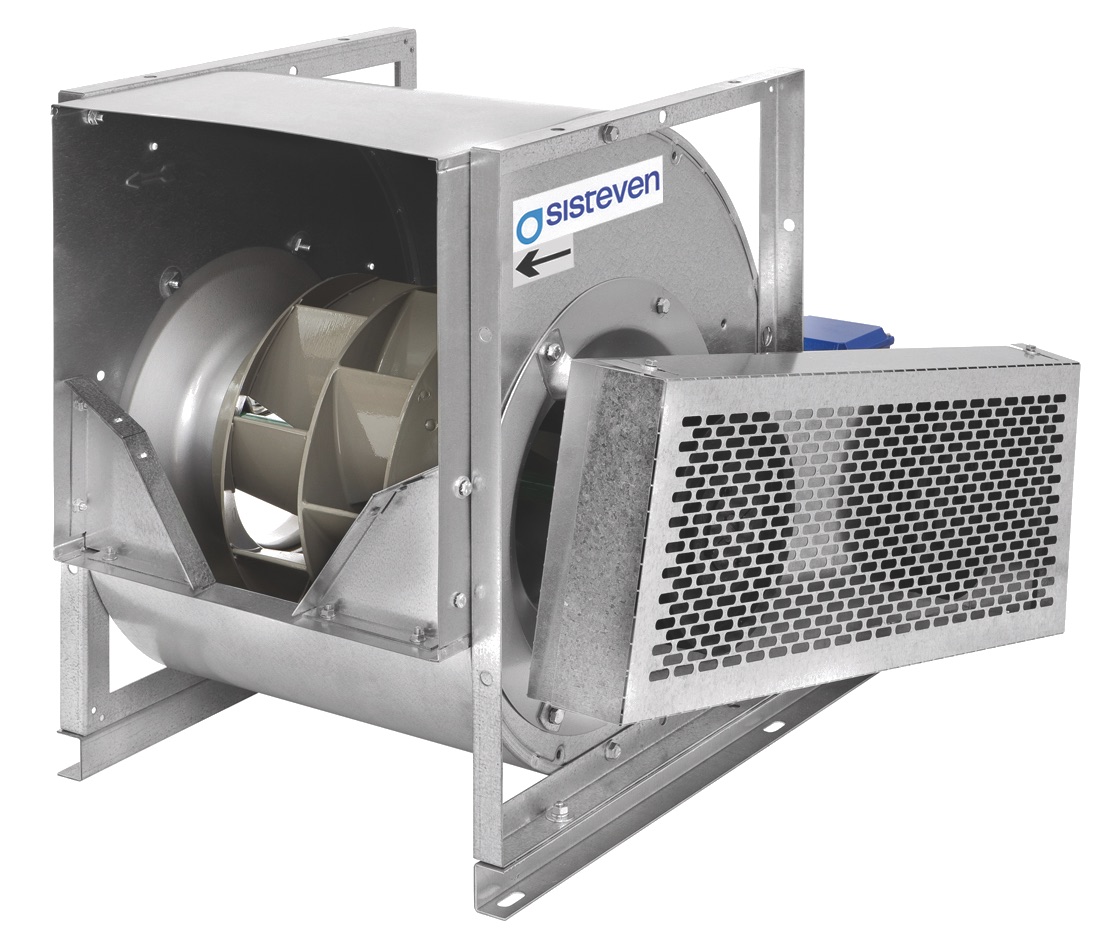

Centrifugal Fans
DTT-RE
Belt driven double inlet centrifugal fans with electric motor, pulleys, belts, guards and backward curved impeller
Fan
- Galvanised steel sheet casing.
- Backward curved impeller made of painted sheet steel.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Working temperature: -25 °C +60 °C.
Finish
- Galvanised steel sheet.
On request
- Different outlet positions.
- Special windings for different voltages.
- With two speed motors.
- ATEX certification.
