Centrifugal Fans
STT

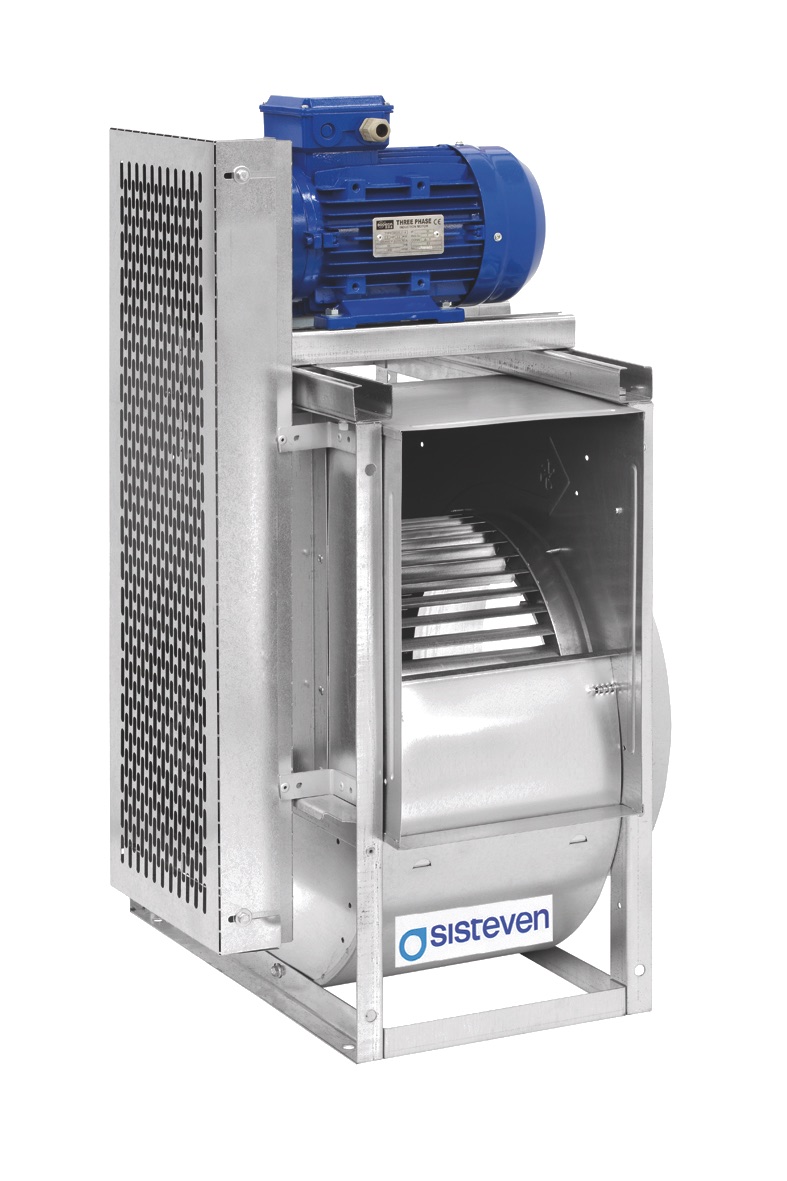

Belt driven centrifugal fans with single inlet, equipped with electric motor, set of pulleys, belts, guards and forward curved impeller
Fan
- Galvanised steel sheet casing.
- Forward curved impeller in galvanised sheet steel.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Working temperature: -25 °C +85 °C.
Finish
- Galvanised steel sheet.
On request
- Different outlet positions.
- Special windings for different voltages.
- With two speed motors.
