Centrifugal Fans

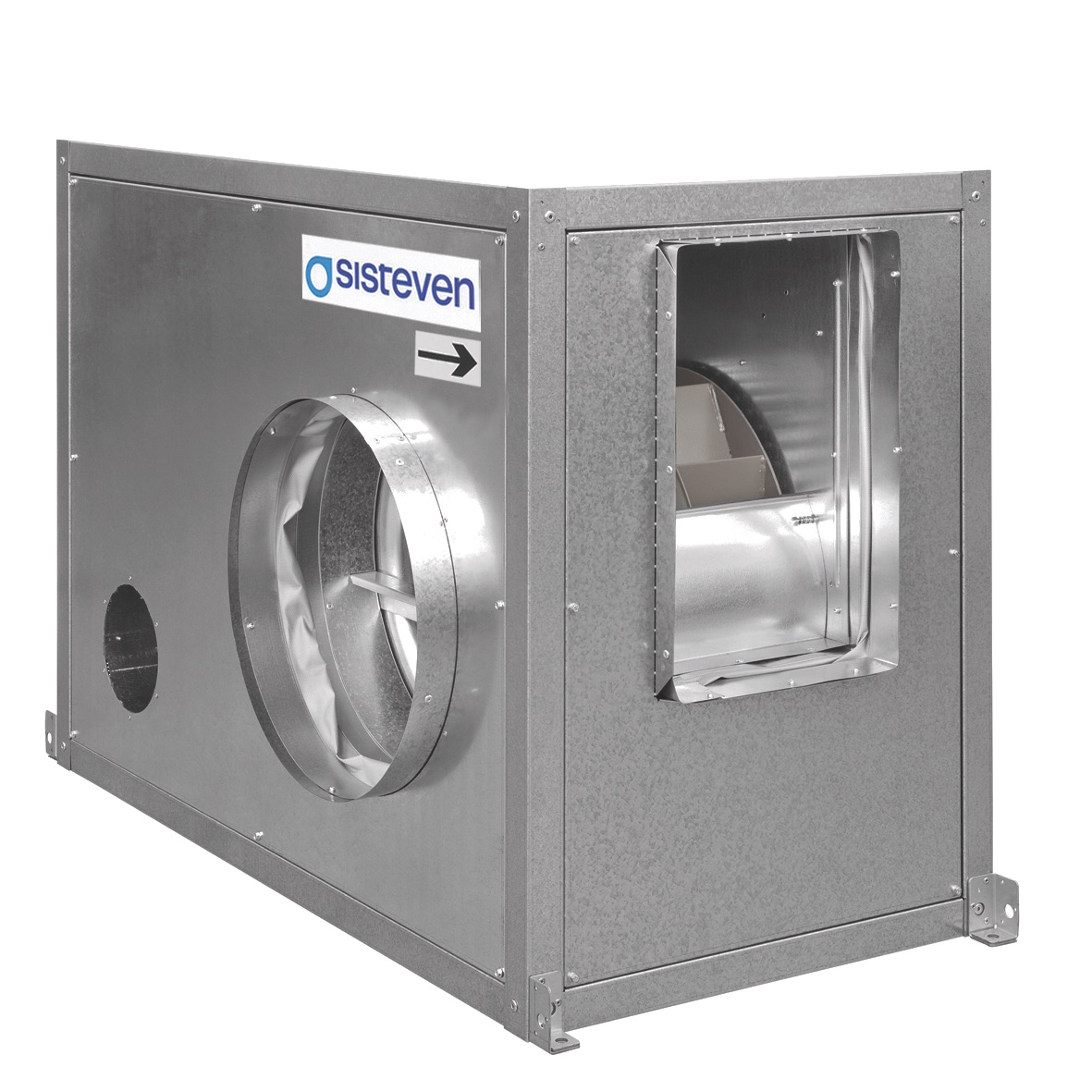

CAST-RE
Belt driven ventilation units with backward curved impeller, acoustic insulation, galvanised sheet steel finish
Fan
- Galvanised steel sheet casing.
- Backward curved impeller made of painted sheet steel.
- Glands for cable entry.
- Maximum temperature of air to be carried: -25 °C +85 °C.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4kW).
- Working temperature: -25 °C +50 °C.
Finish
- Galvanised sheet steel with thermal and acoustic insulation.
On request
- Different outlet positions.
- Circular outlet.
- ATEX certification.
