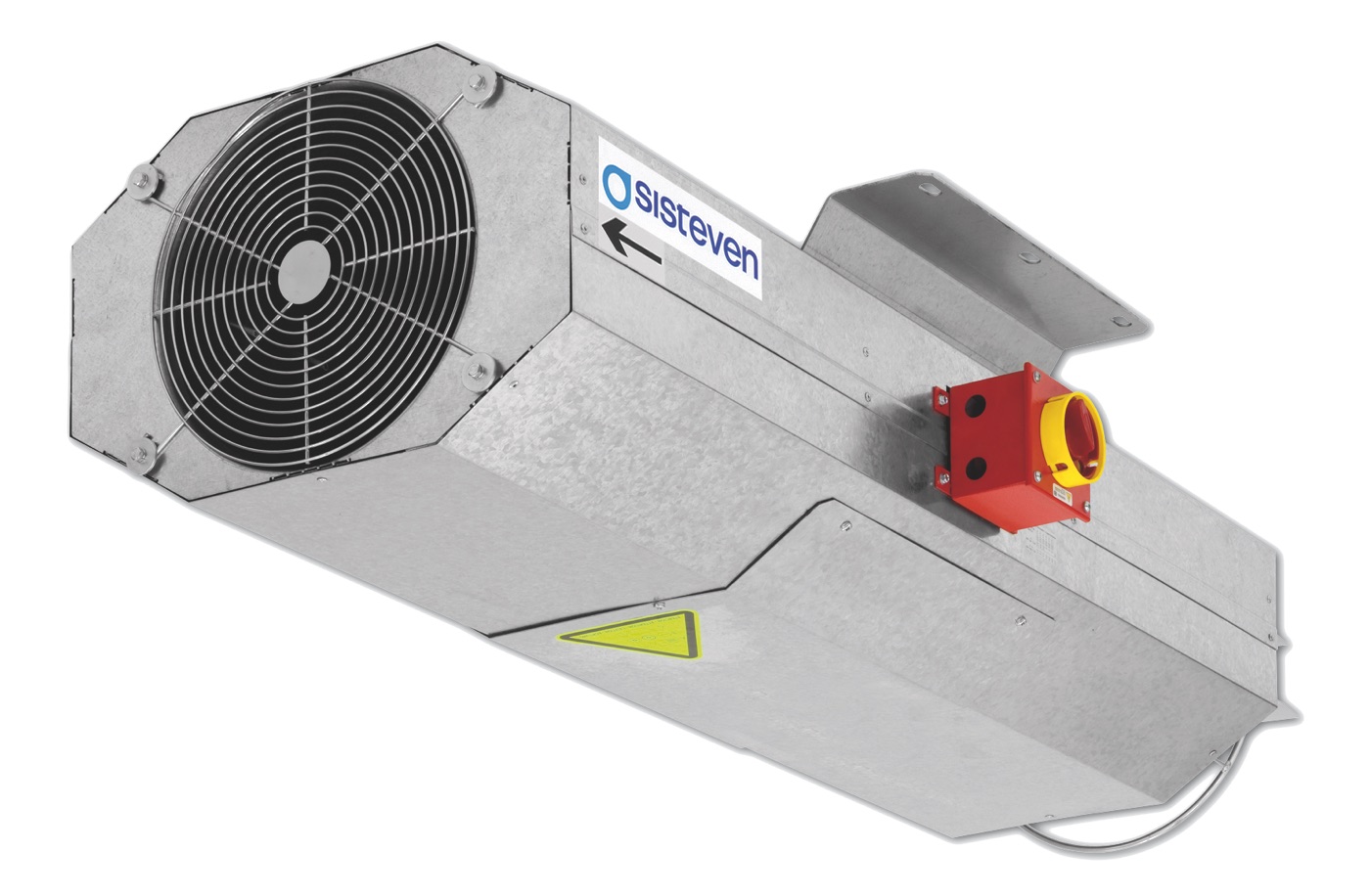

JET-TST
Fan
- Unidirectional or reversible fan assembly consisting of fan, silencers, deflectors and supports, approved for smoke evacuation, according to EN 12101-3.
- Adjustable cast aluminum impeller designed to obtain high thrusts.
- Protection grid against contacts according to the UNE-EN ISO 12499 standard in unidirectional models.
- Deflector for increased air reach, on the outlet side. Reversible models are equipped with deflectors on both sides.
- High attenuation silencers with thermal and acoustic insulation.
- Safety switch built-in to the fan.
- Airflow direction from motor to impeller or 100% reversible.
- Galvanised steel casing.
Motor
- Class H motors for continuous use S1 and emergency use S2. With ball bearings, IP55 protection and 2 speeds.
- Three-phase 400 V 50 Hz DAHLANDER.
- Maximum temperature of air to be carried: S1 -25 °C +40 °C continuous service, also suitable for warm climates with temperatures up to 50 °C. S2 operation, 300 °C/2h, 400 °C/2h.
Finish
- Galvanised steel sheet.
On request
- Thrust performance other than those indicated.
