Product / Industrial Fans
Roof Fans

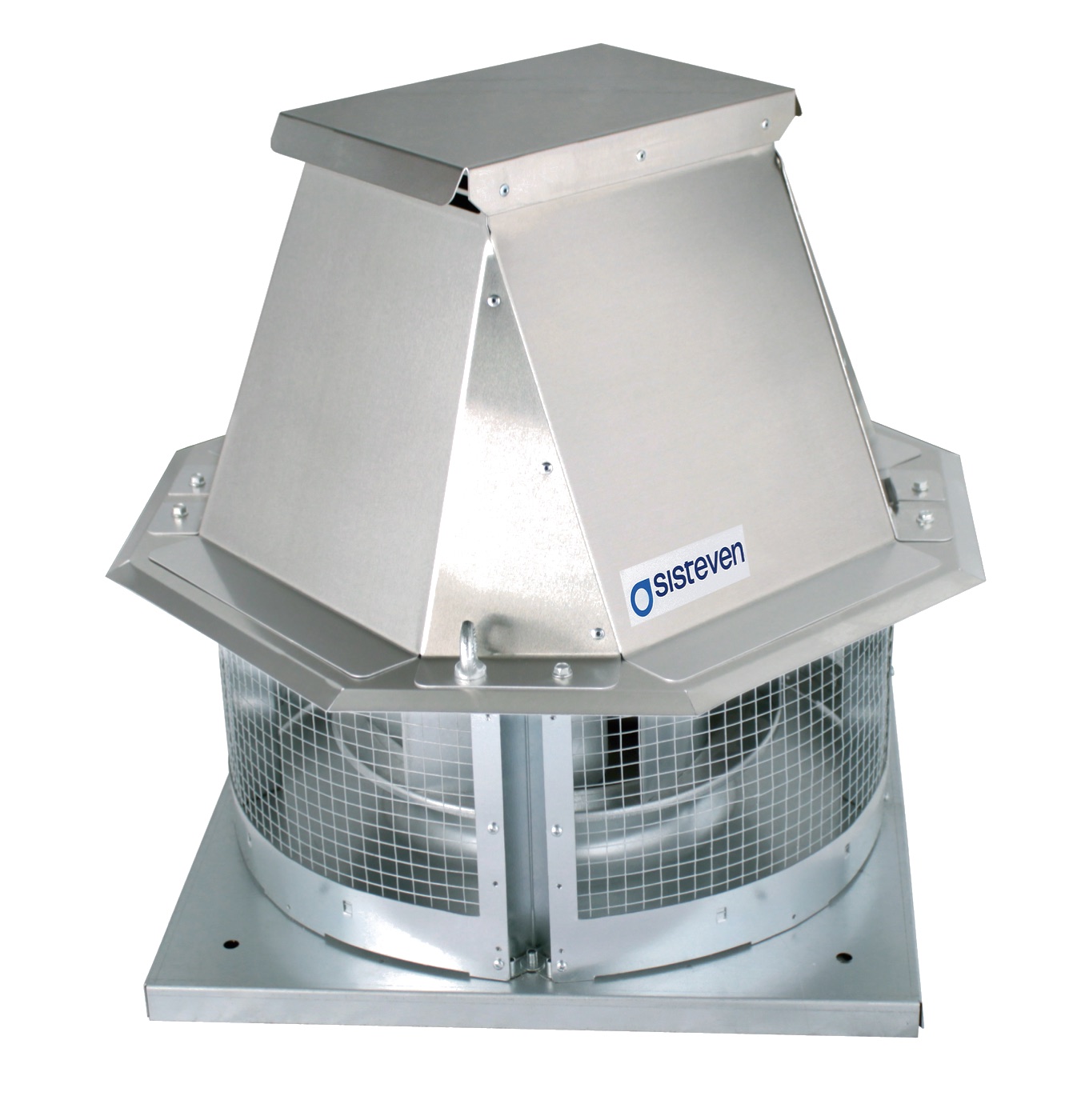

TSK-F-400
Fan
- Support base in galvanised steel sheet.
- Backward curved impeller made of galvanised sheet steel.
- Bird protection grid.
- Aluminum rain cover.
- Approved in accordance with standard EN 12101-3.
- Maximum temperature of air to be carried: -25 °C +120 °C.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings, IP55 protection.
- Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz.
- Working temperature: -25 °C +50 °C.
Finish
- Galvanised steel sheet and aluminum.
On request
- Special windings for different voltages.
- ATEX certified Category 3.
Related Products
DAS-ROOF TOP
Centrifugal roof mounted extract fans for househol...

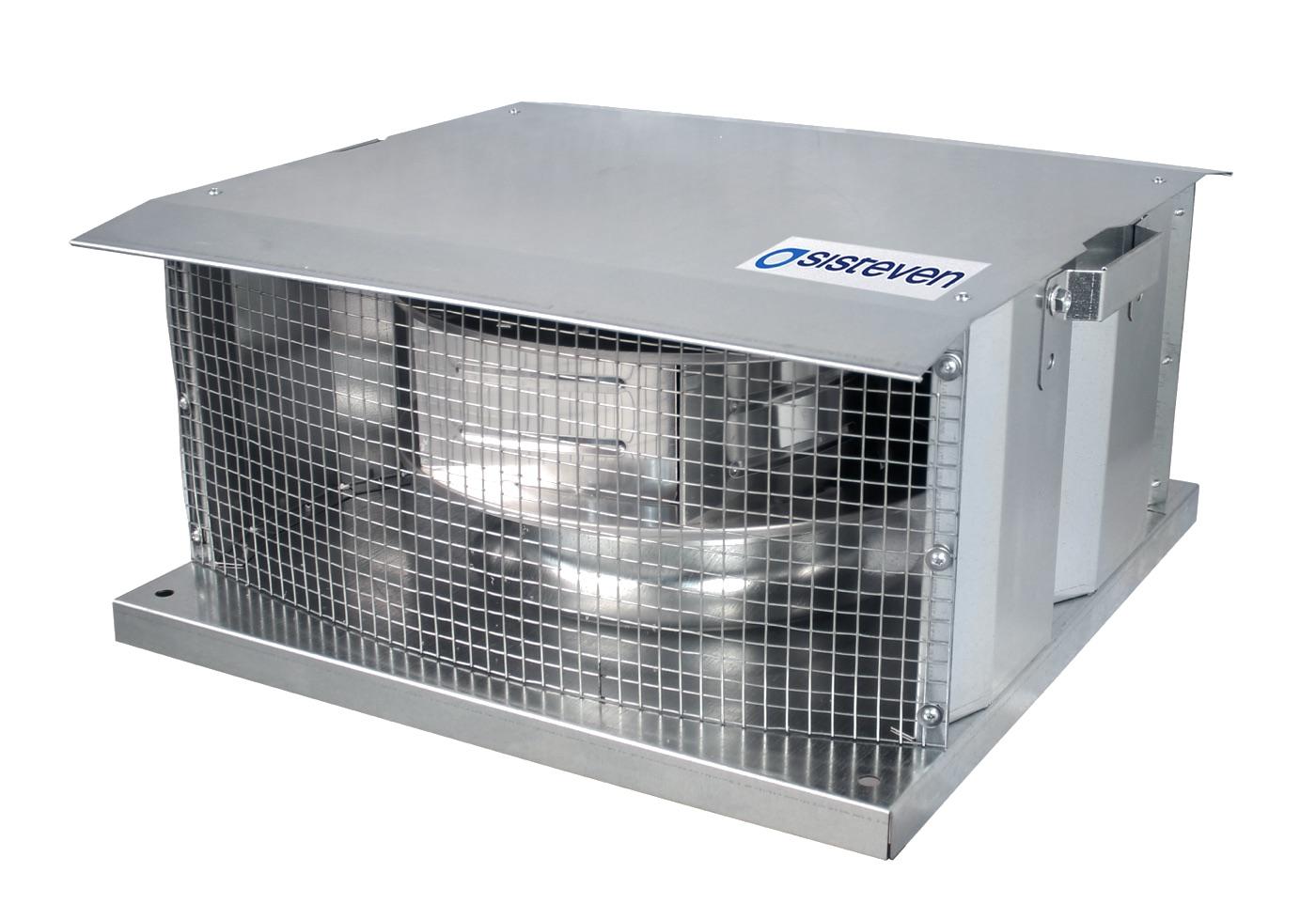

TSCE
