Centrifugal Fans

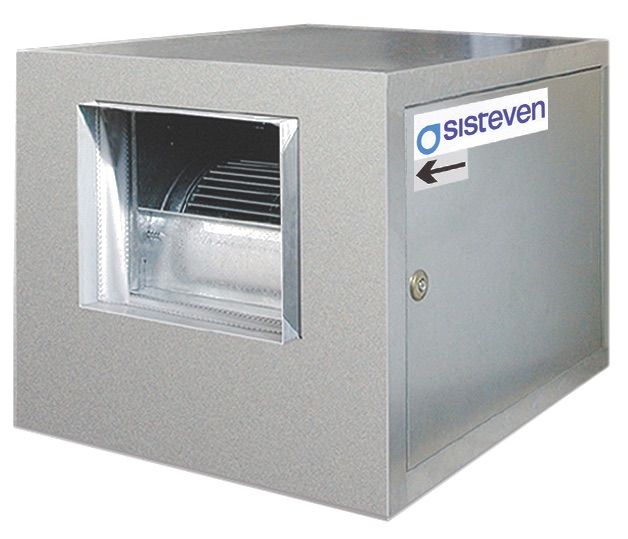

CADT
Transmission ventilation units acoustically insulated
Fan
- Ventilation units equipped with double inlet fans of the DTS, DTC and DTR fans.
- Galvanised sheet steel structure with thermal insulation and acoustic insulation.
- Glands for cable entry.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings, IP55 protection.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4kW).
- Working temperature: -25 °C +60 °C.
Finish
- Galvanised steel sheet.
On request
- With circular outlet.
