Smoke Extraction Fans

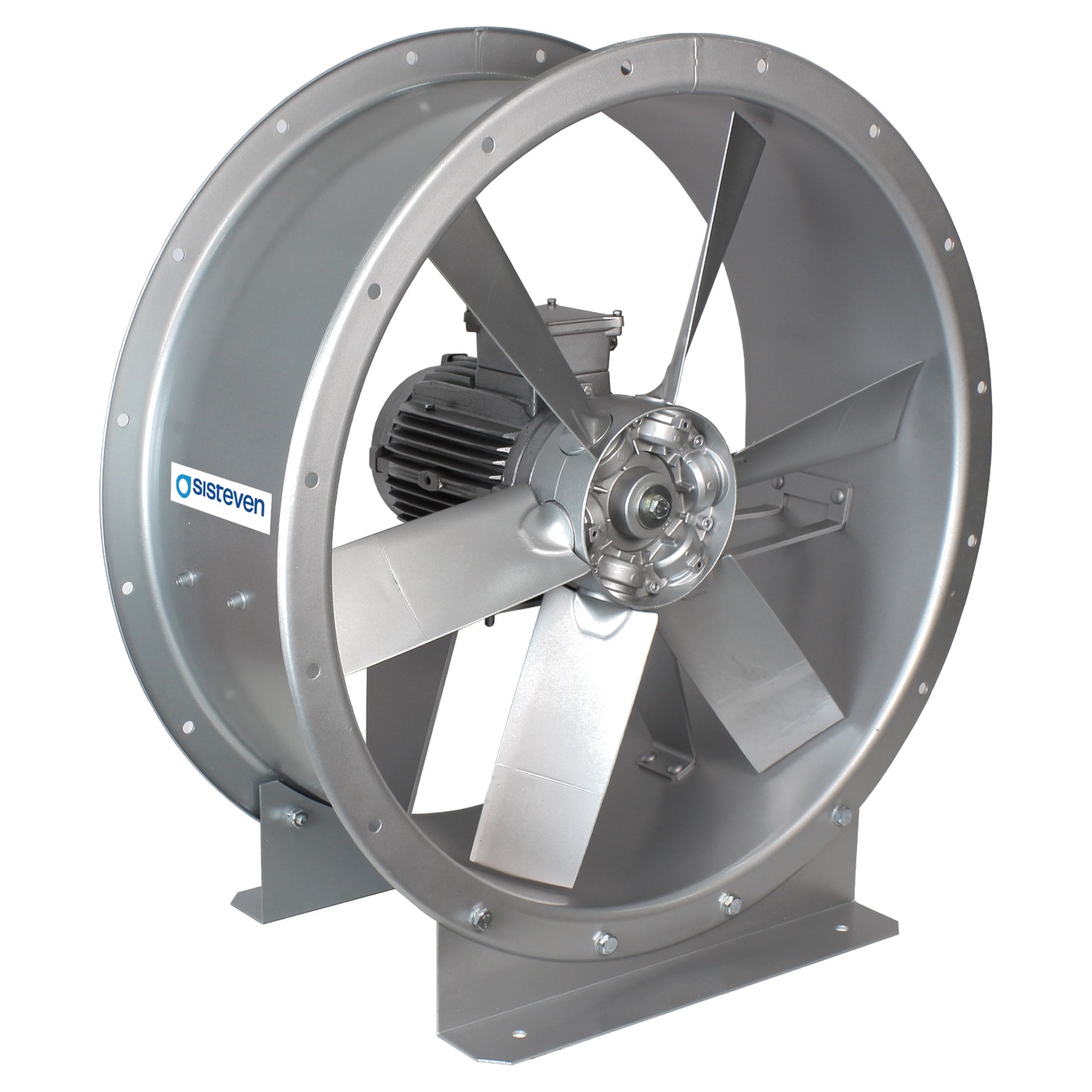

TST
Fan
- Tubular casing in sheet steel.
- Variable angle impeller made of cast aluminium.
- Approved in accordance with standard EN 12101-3.
- Airflow direction from motor to impeller.
Motor
- Class H motors for S1 continuous operation and S2 emergency use. With ball bearings, IP55 protection and 1 or 2 speeds, depending on model.
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
- Maximum temperature of air to be carried: S1 -25 °C +40 °C continuous service, also suitable for warm climates with temperatures up to 50 °C. S2 operation, 300 °C/2h, 400 °C/2h.
Finish
- Galvanised steel sheet.
Available versions
- TST/CL: Tubular axial fans with long casing equipped with inspection hatch.
On request
- Airflow direction from impeller to motor.
- 100% reversible impellers.
Related Products

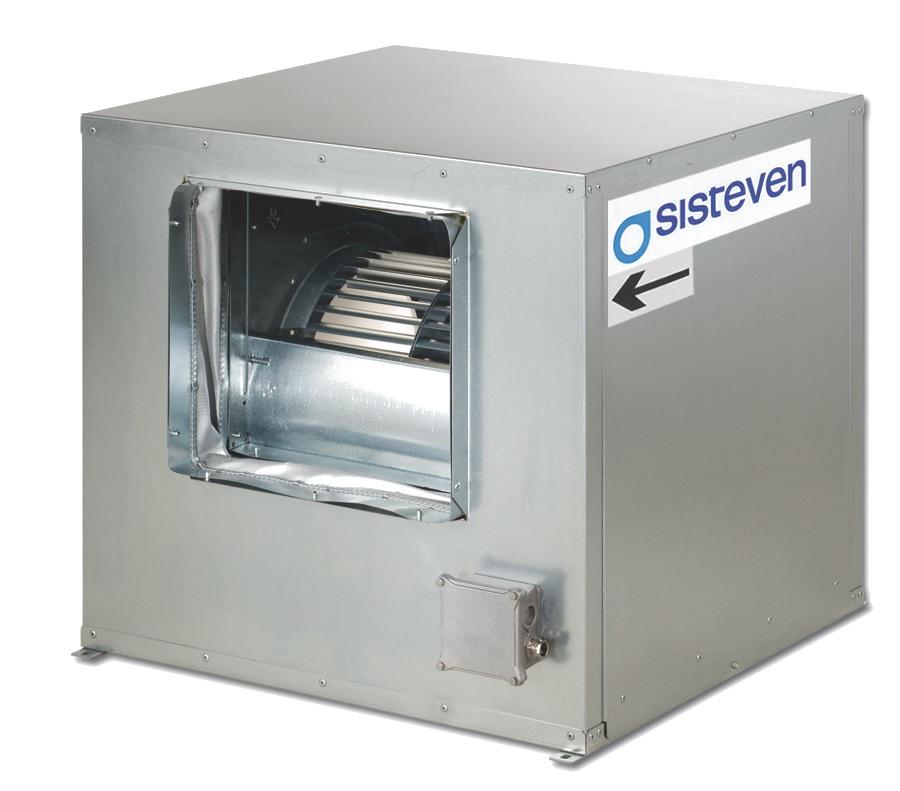

CADTMT
Extraction units and centrifugal double suction fa...

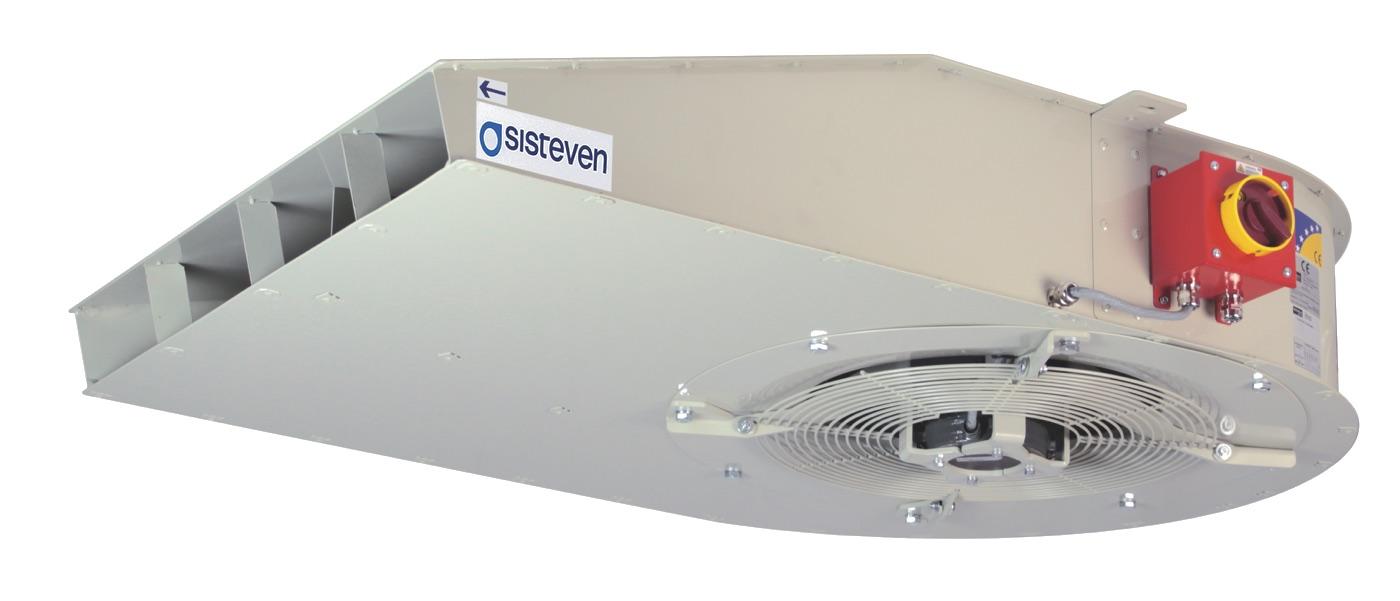

CIS
Long-range 300 °C/2h and 400 °C/2h centrifugal ind...

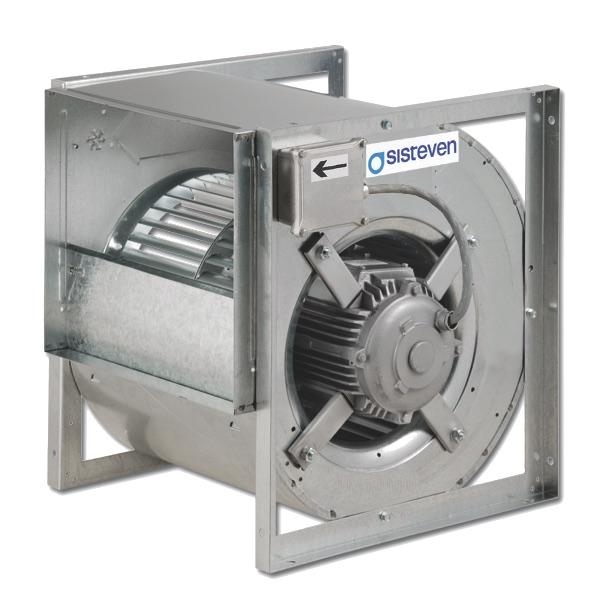

DTMT
Extraction units and centrifugal double suction fa...
JET-TST
400 °C/2h and 300 °C/2h long range unidirectional ...

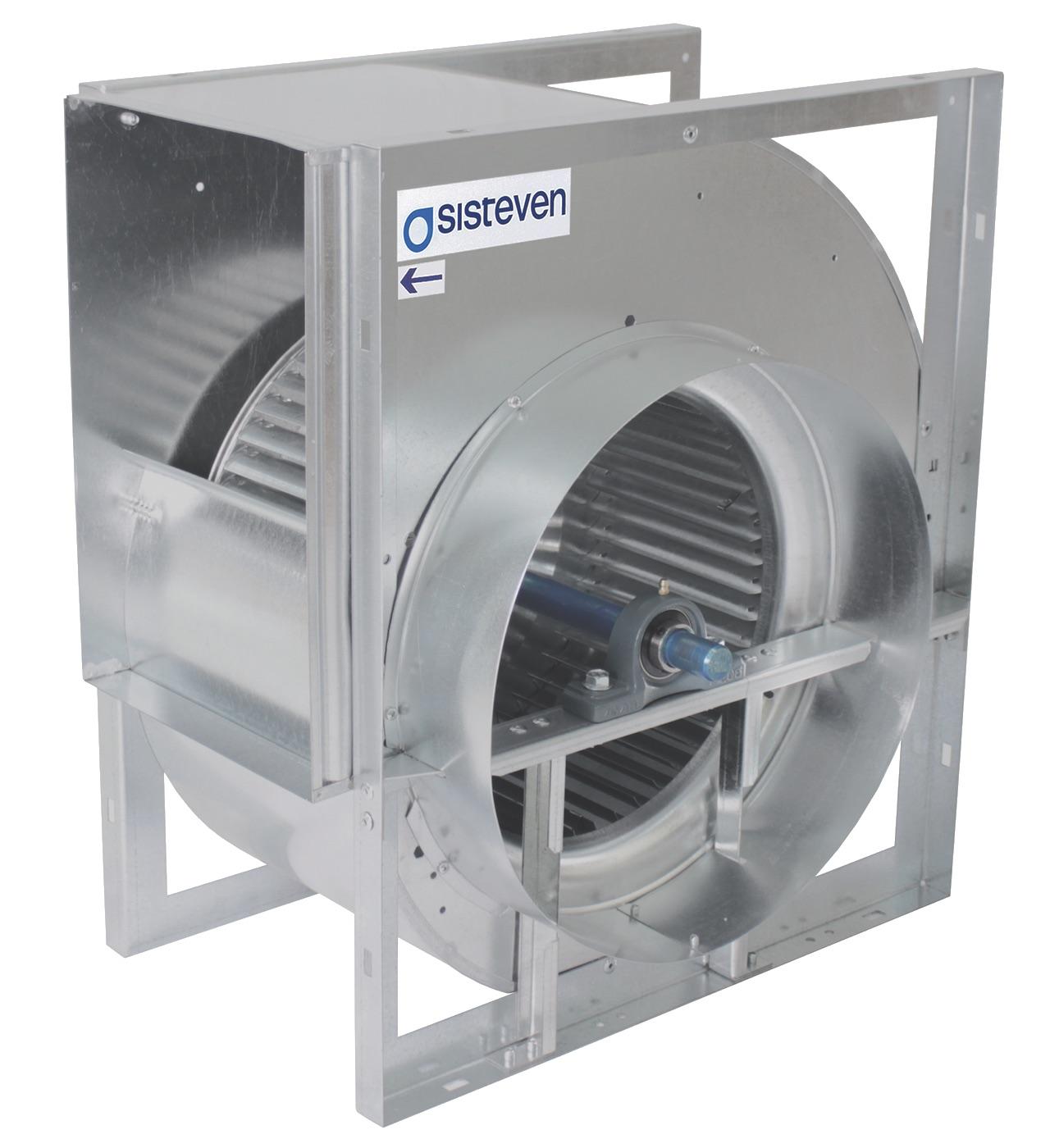

STR-F-400
Belt driven centrifugal fans with single inlet, wi...

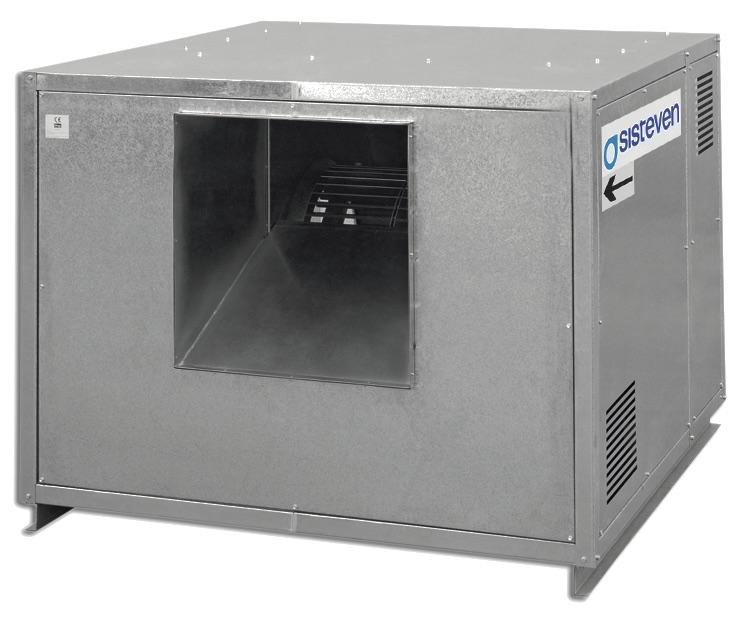

SUVT-C-F-400
Extraction units 400 °C/2h, with motor and transmi...

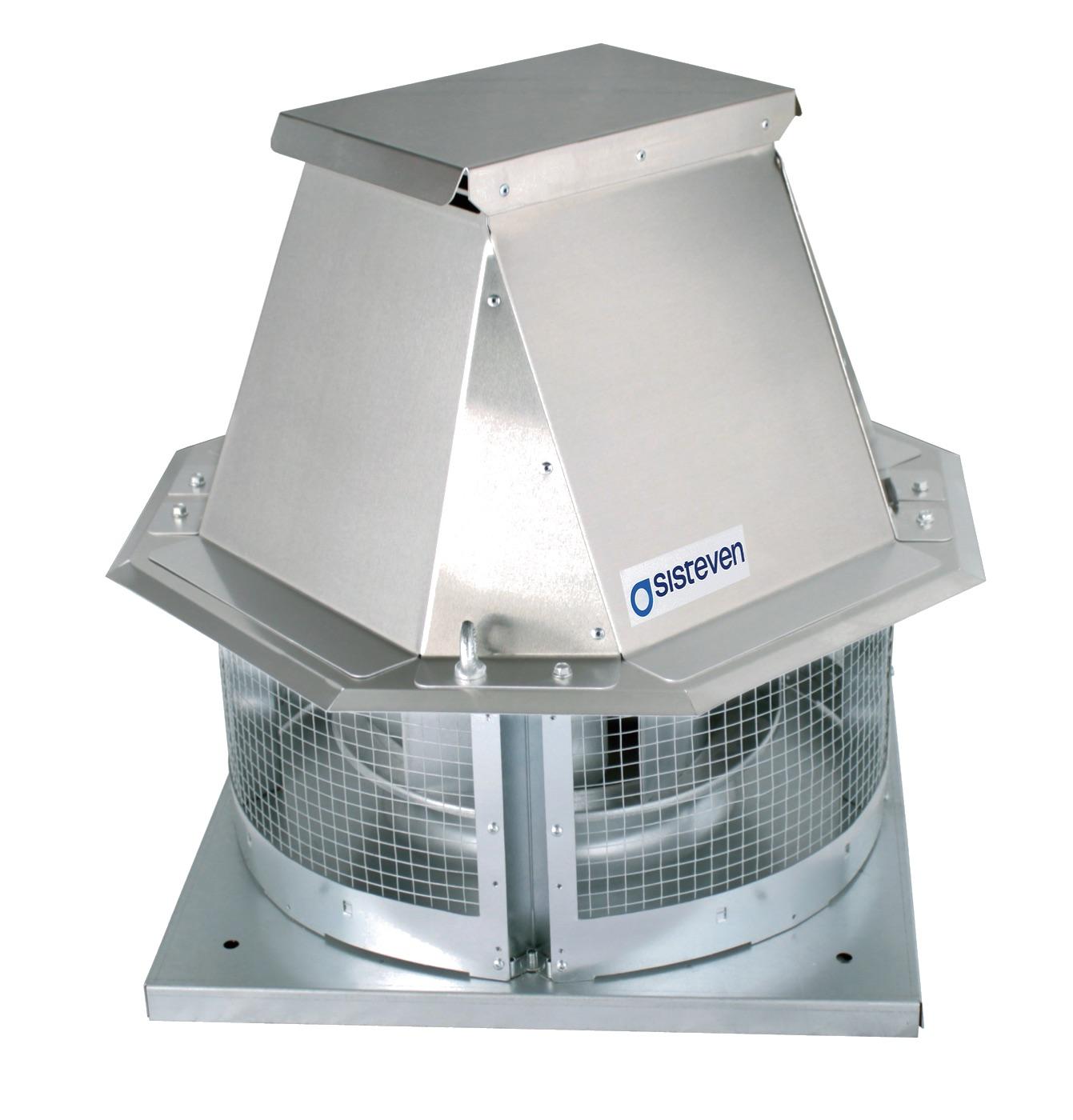

TSK-F-400
400 °C/2h centrifugal roof fans with horitzontal a...

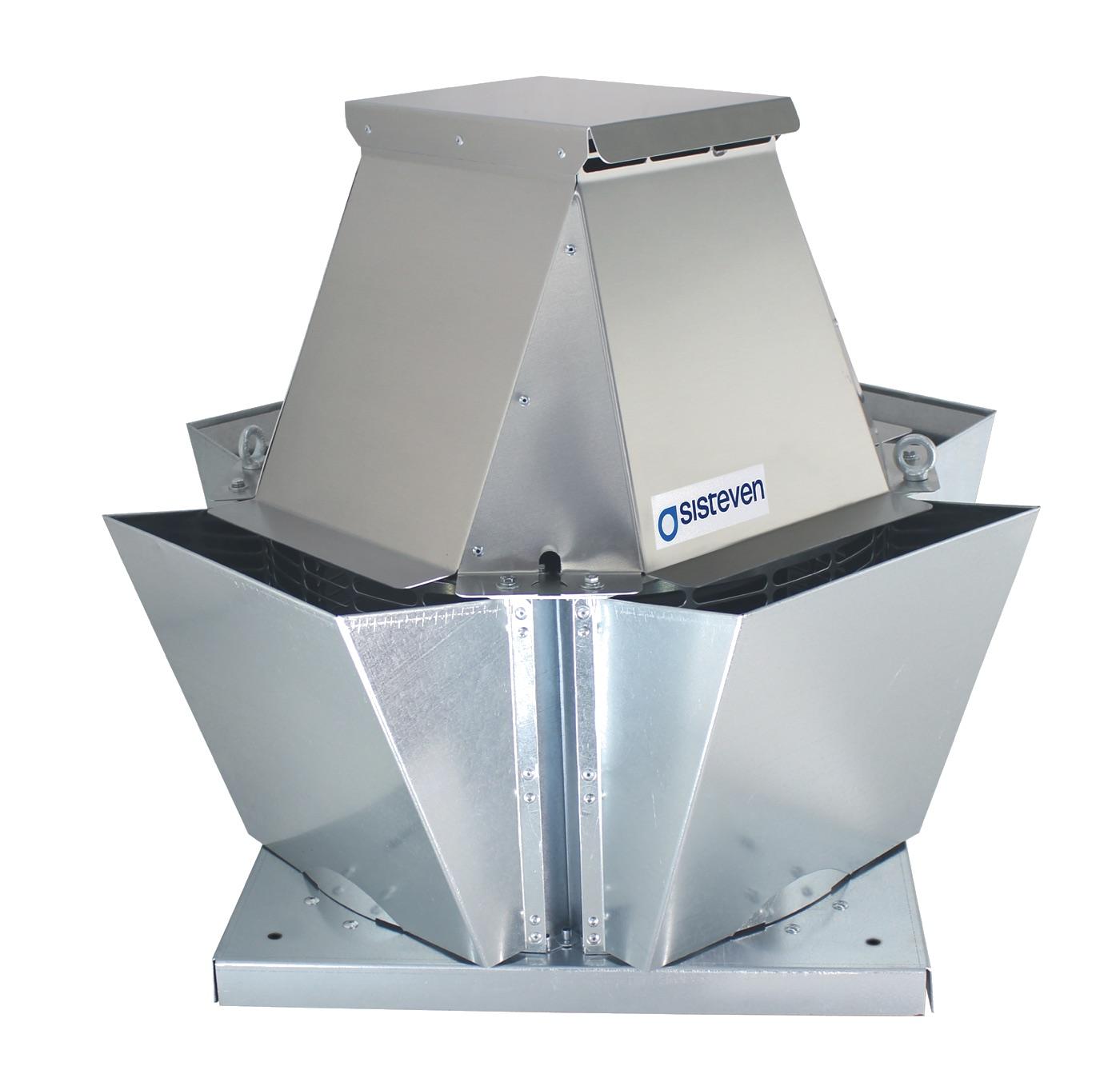

TSKV-F-400
