Smoke Extraction Fans

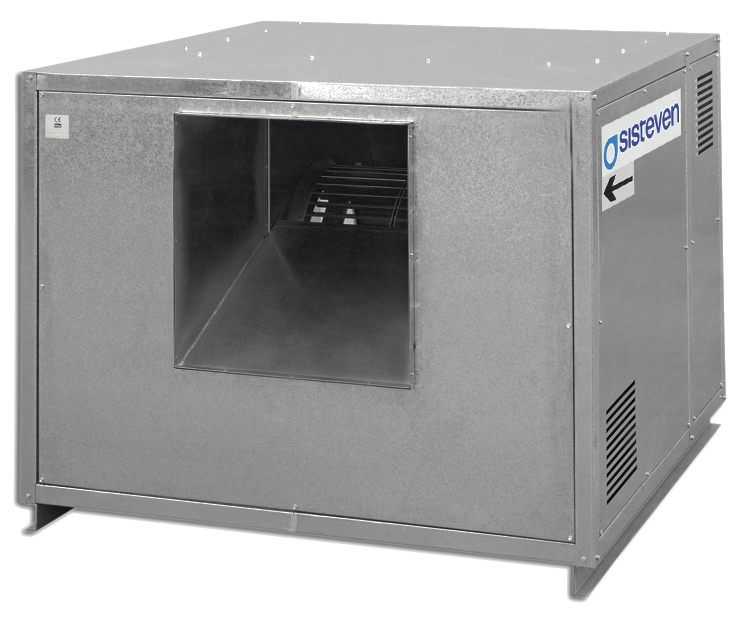

SUVT-C-F-400
Extraction units 400 °C/2h, with motor and transmission inside the box to work outside the fire zone
Fan
- Galvanised sheet steel structure.
- Forward curved impeller in galvanised sheet steel.
- Approved in accordance with standard EN 12101-3.
- Linear airflow direction.
Motor
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings, IP55 protection and with 1 or 2 speeds, depending on model.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Maximum temperature of air to be carried: S1 continuous operation -25 °C +120 °C. S2 operation, 300 °C/2h and 400 °C/2h.
Finish
- Galvanised steel sheet.
On request
- Fans with vertical outlet.
