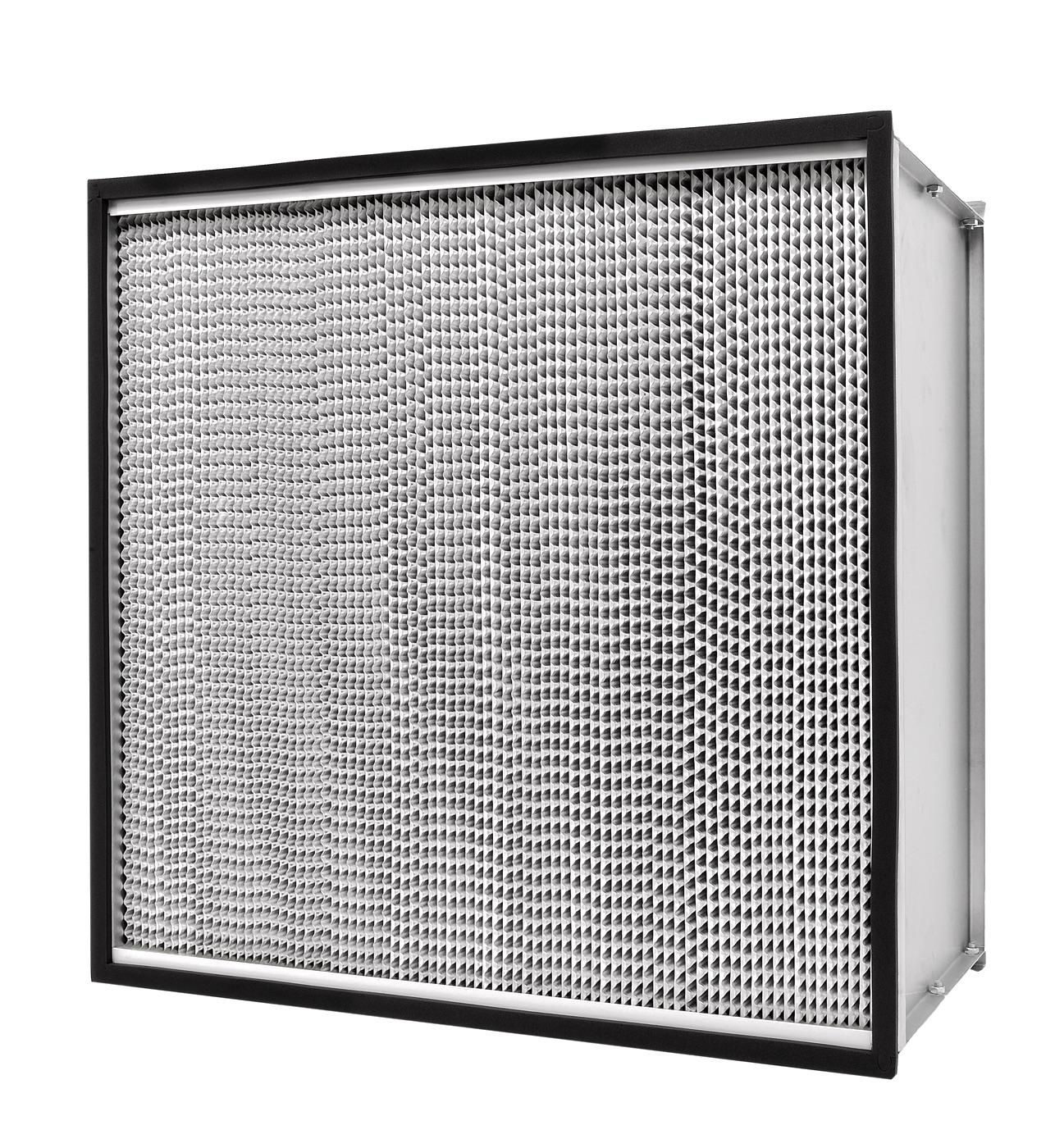

Hepa Filters

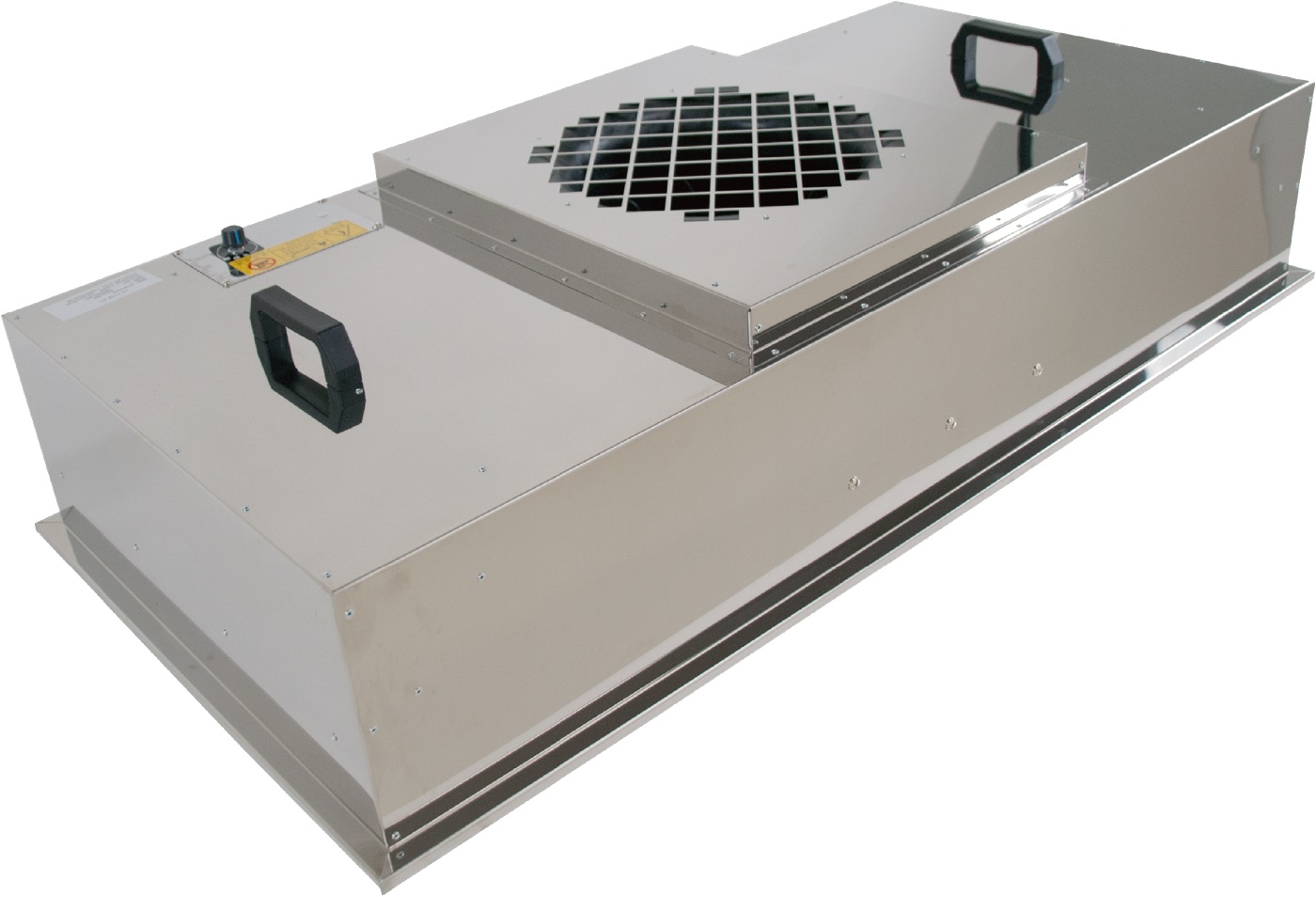

Fan Filter Unit (FFU)
Specifications
- Frame: Galvanized, Aluminum, Stainless Steel
- Media: Glass fiber
- Efficiency: H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Hot melt
- Sealant: Polyurethane (PU)
- Flame Retardant Grade: UL900
- Max. Temperature: ≦ 80°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 250 Pa
Advantages
- Low pressure drop design
- Energy saving
- Longer service life
- Easy to install
- Lower noise
Applications
- Designed for being applied for the pharmaceutical, semi-conductor, micro-electronics, bio-industry and the surgery rooms in the hospitals.
For More Information and Custom Services, Please Feel Free to Contact Us.
