Hepa Filters

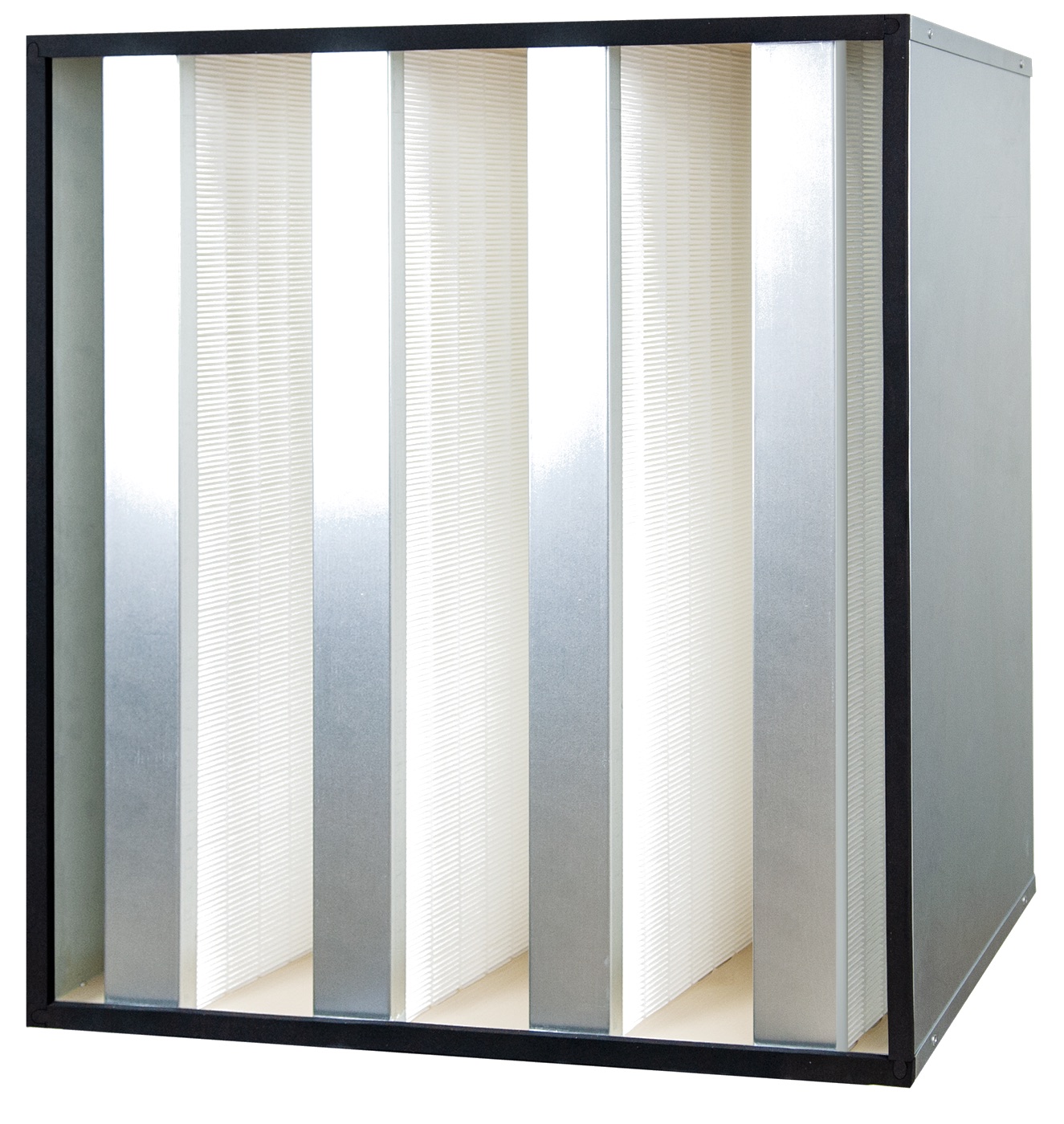

HEPA HV (High Volume) V bank Filters
Specifications
- Frame: Galvanized, Aluminum, ABS
- Header: Single header or box type
- Media: Wet-laid glass fiber
- Type: 1V, 3V, 4V, 5V, 6V
- (Plastic frame: ONLY available for 4V)
- Media: Wet-laid micro-glass fiber
- Efficiency:
- H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥95% / DOP: ≥99.9%@0.3 μm
- H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Hot-melt adhesives
- Sealant: Polyurethane (PU)
- Flame Retardant Grade: UL900
- Max. Temperature: ≦ 70°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 600 Pa
Advantages
- Lower air pressure drop
- Cost saving
- Extend longer lifespan
- Higher dust holding capacity
Applications
- Suitable for any applications such as PRE FILTER for power generating facilities or FINAL FILTER for high-tech industries. High volume filters are widely used in the area of repeated turbulent air flow, repeated fan shutdown, desert and marine installation.
For More Information and Custom Services, Please Feel Free to Contact Us.
