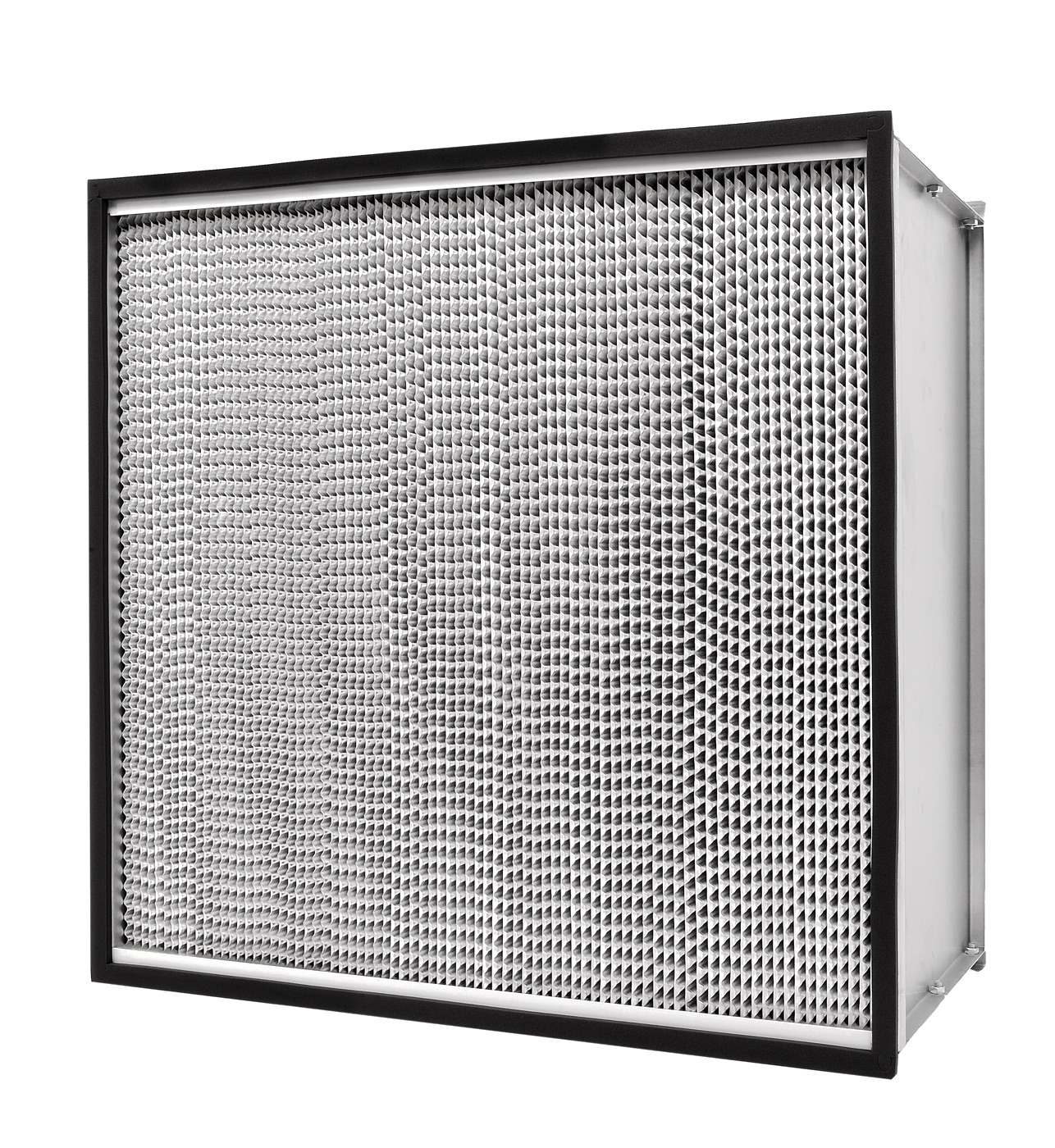

HEPA Aluminium Separator
Specifications
- Frame: Galvanized, Wood, Aluminum & Stainless Steel
- Header: Box type, Single, Double header
- Media: Wet-laid glass fiber
- Efficiency: H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥95% / DOP: ≥99.9%@0.3 μm
- H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Aluminum foil
- Sealant: Polyurethane (PU)
- Flame Retardant Grade: UL900
- Max. Temperature: ≦ 80°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 500 Pa
Advantages
- Control airflow under high humidity
- Hammered edges eliminate possible pleat damage
- Extend life span with low initial resistance
- Comply with UL900 grade flame retardant
Applications
- Available for being applied in pharmaceutical industry, food processing industry, hospitals, aerospace and cleanroom.
