Hepa Filters

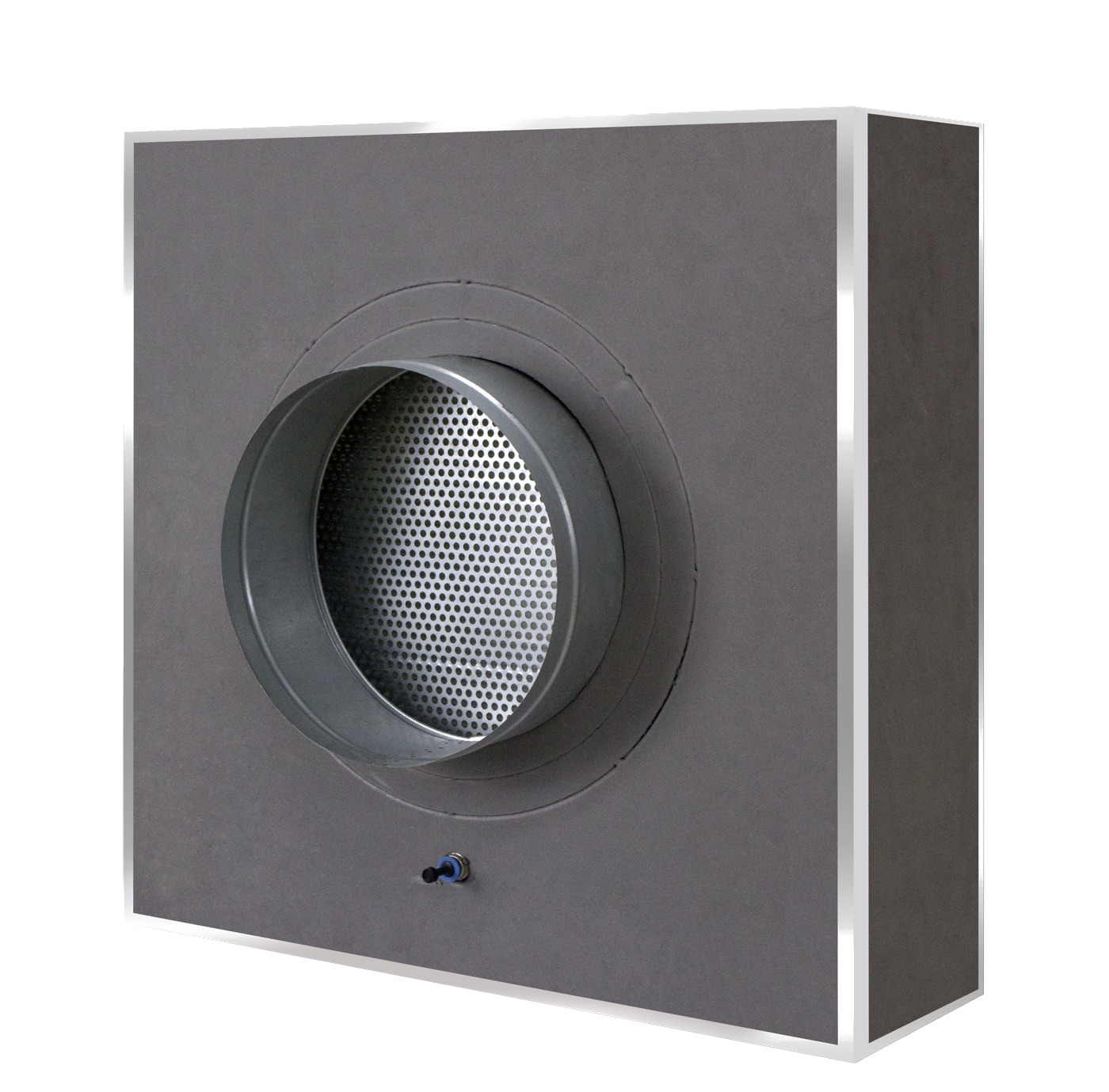

HEPA Disposable Terminal Box Filter for Cleanroom
Specifications
- Frame: Extruded aluminum
- Media: Glass fiber
- Efficiency: H11 (EN 1822) / MERV 16 (ASHRAE 52.2)
- MPPS: ≥95% / DOP: ≥99.9%@0.3 μm
- H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
- MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
- H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
- MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
- Separator: Hot melt
- Sealant: Polyurethane (PU)
- Fire Retardant grade: UL900
- Max. Temperature: ≦ 80°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 500 Pa
Advantages
- Low pressure drop design
- Energy saving
- Longer service life
- Built-in seismic holes and 2.0" high continuous inlet collar reduces installation time
Applications
- Designed for being applied for the pharmaceutical, semiconductor, microelectronics, bioindustry and the surgery rooms of hospitals.
For More Information and Custom Services, Please Feel Free to Contact Us.
