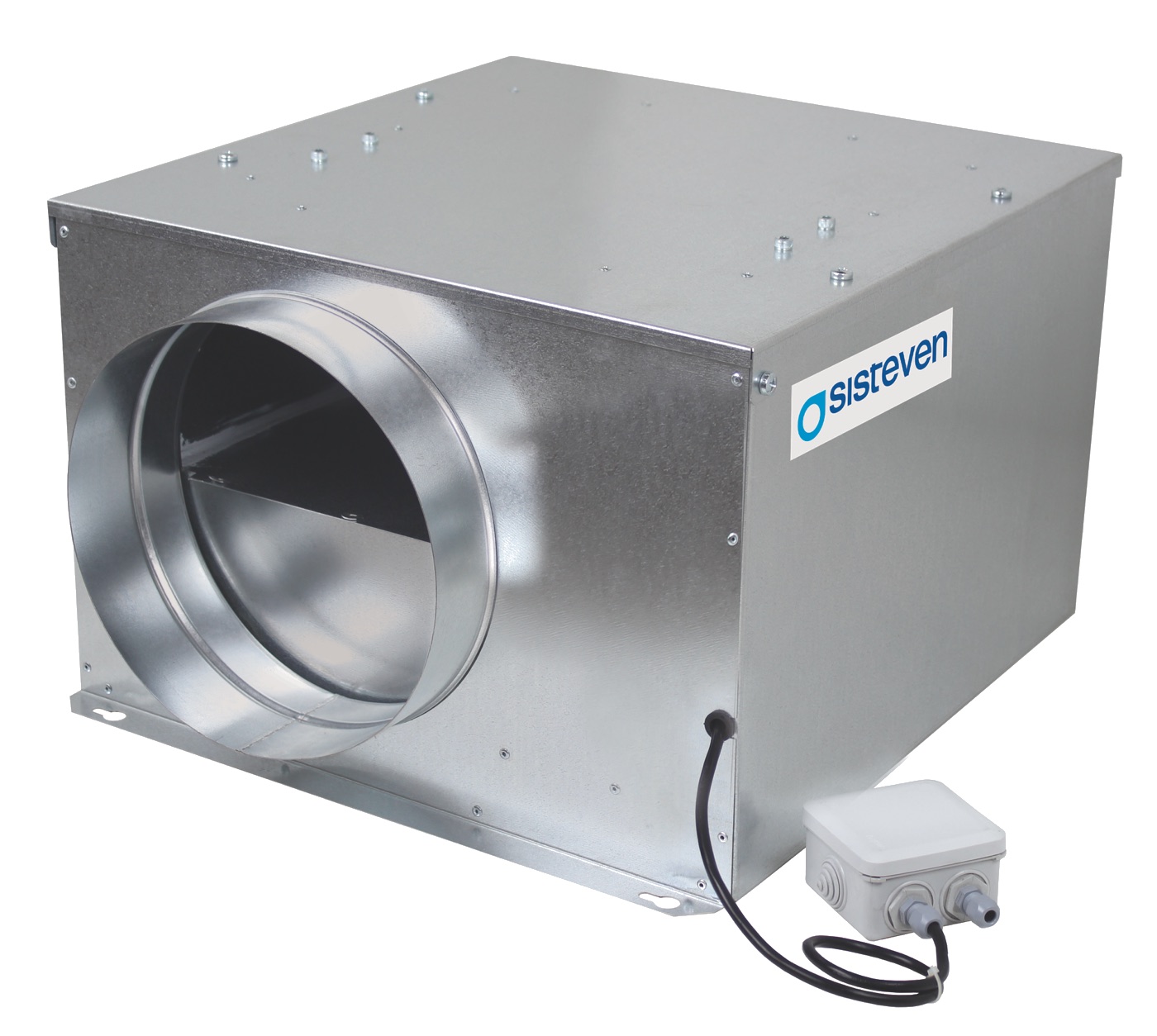

In Line Fans
SS
Low noise, in-line duct extractor fans mounted inside an acoustic casing
Fan
- Acoustic casing covered with sound absorbing material.
- Backward curved impeller, except models 100-125-150-160-200/H, provided with forward curved impeller.
- Standardised inlet and outlet flanges allowing for easy installation in ducts.
- Fitted with a folding inspection hatch, except models 100-125-160/L-150/L.
- Support feet integrated into the box which facilitates its assembly.
- Linear airflow direction.
Motor
- External rotor motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
- Single-phase 230 V 50/60 Hz adjustable.
- Maximum temperature of air to be carried: +50 °C.
Finish
- Galvanised steel sheet.
