In Line Fans

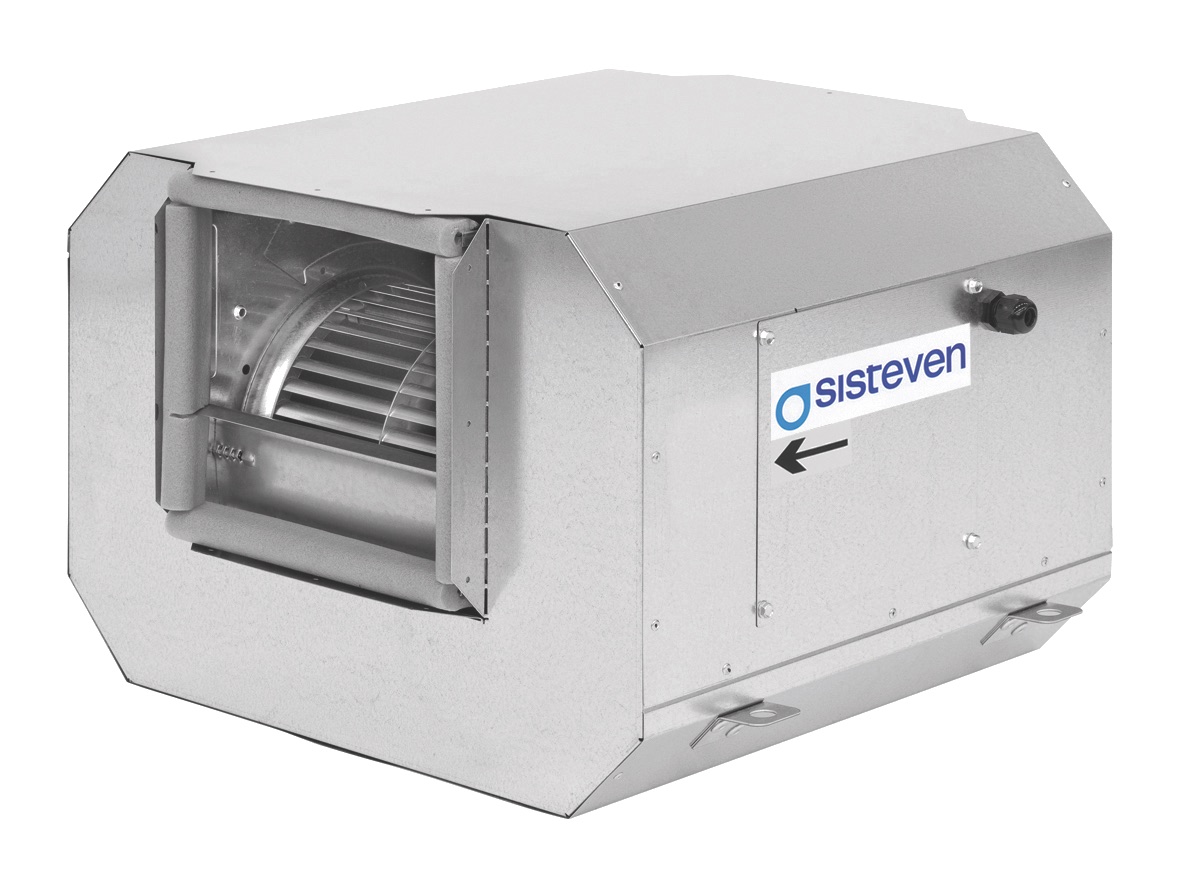

CABC
Compact direct drive extraction units
Fan
- Galvanised sheet steel structure with thermal insulation and acoustic insulation.
- Forward curved impeller in galvanised sheet steel.
- Glands for cable entry.
- Maximum temperature of air to be carried: -25 °C +60 °C.
Motor
- Enclosed motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
- Single-phase 220-240 V 50 Hz and three-phase 220-240/380-415 V 50 Hz.
- Working temperature: -25 °C +50 °C.
Finish
- Galvanised steel sheet.
On Request
- With circular outlet.
