Secondary Filters

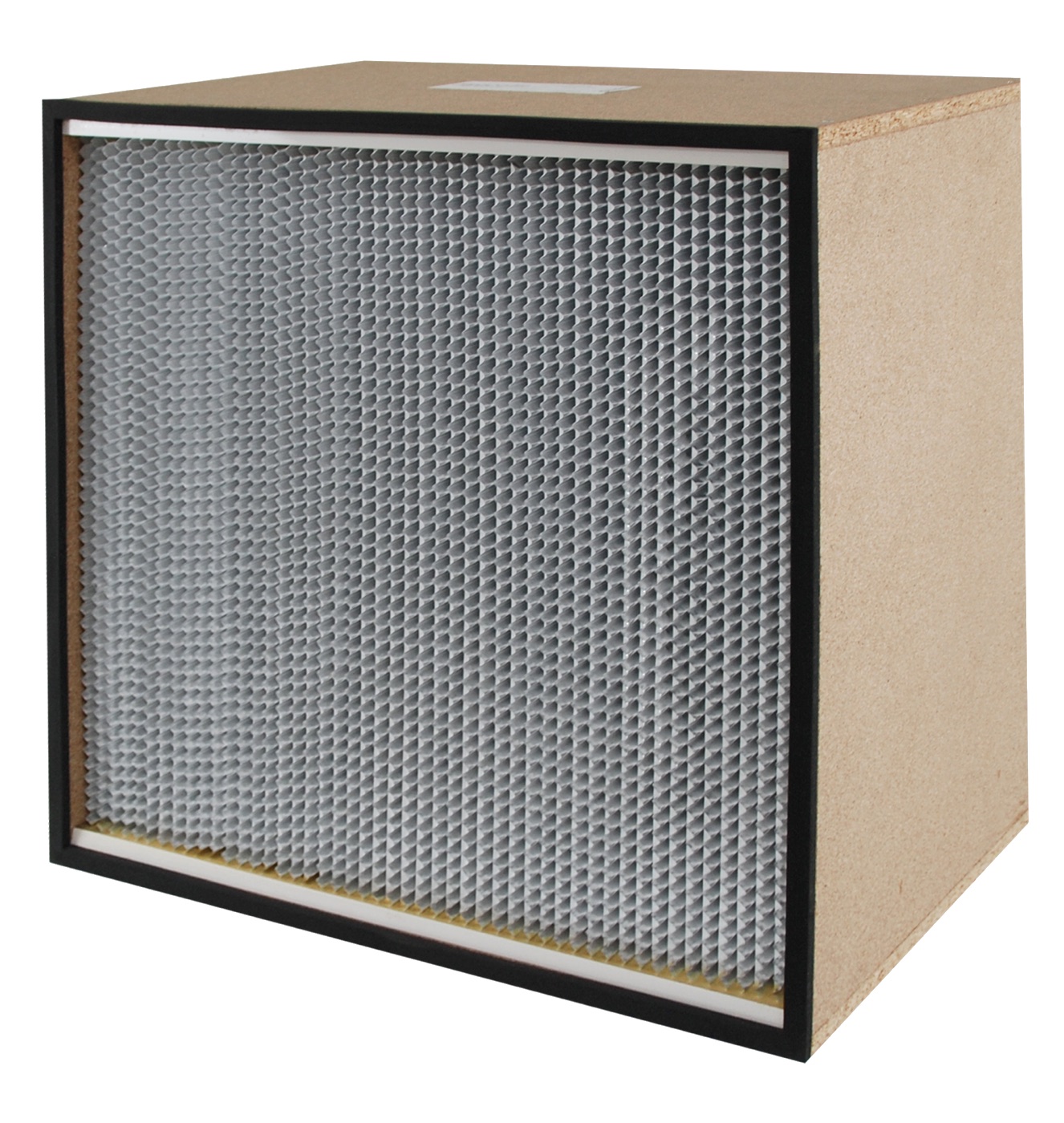

ASHRAE Separator Box Filters
Specifications
- Frame: Wood, Galvanized steel, Aluminum
- Header: Box type, Single, Double header
- Media: Wet-laid glass fiber
- Efficiency: M6 (EN 779), 60~80% / MERV 11~12 (ASHRAE 52.2)
- F7 (EN 779), 80~90% / MERV 13 (ASHRAE 52.2)
- F8 (EN 779), 90~95% / MERV 14 (ASHRAE 52.2)
- Separator: Aluminum foil
- Sealant: Polyurethane (PU)
- Fire retardant grade: UL900
- Max. Temperature: ≦ 80°C
- Max. Humidity: ≦ 100% RH
- Rec. Final Pressure Drop: ≦ 350 Pa
Advantages
- Control airflow under high humidity
- Hammered edges eliminate possible pleat damage
- Extend life span with low initial resistance
- Comply with UL900 flame retardant
Applications
- Available for being applied in pharmaceutical industry, food processing industry, hospitals and aerospace.
