Primary Filters

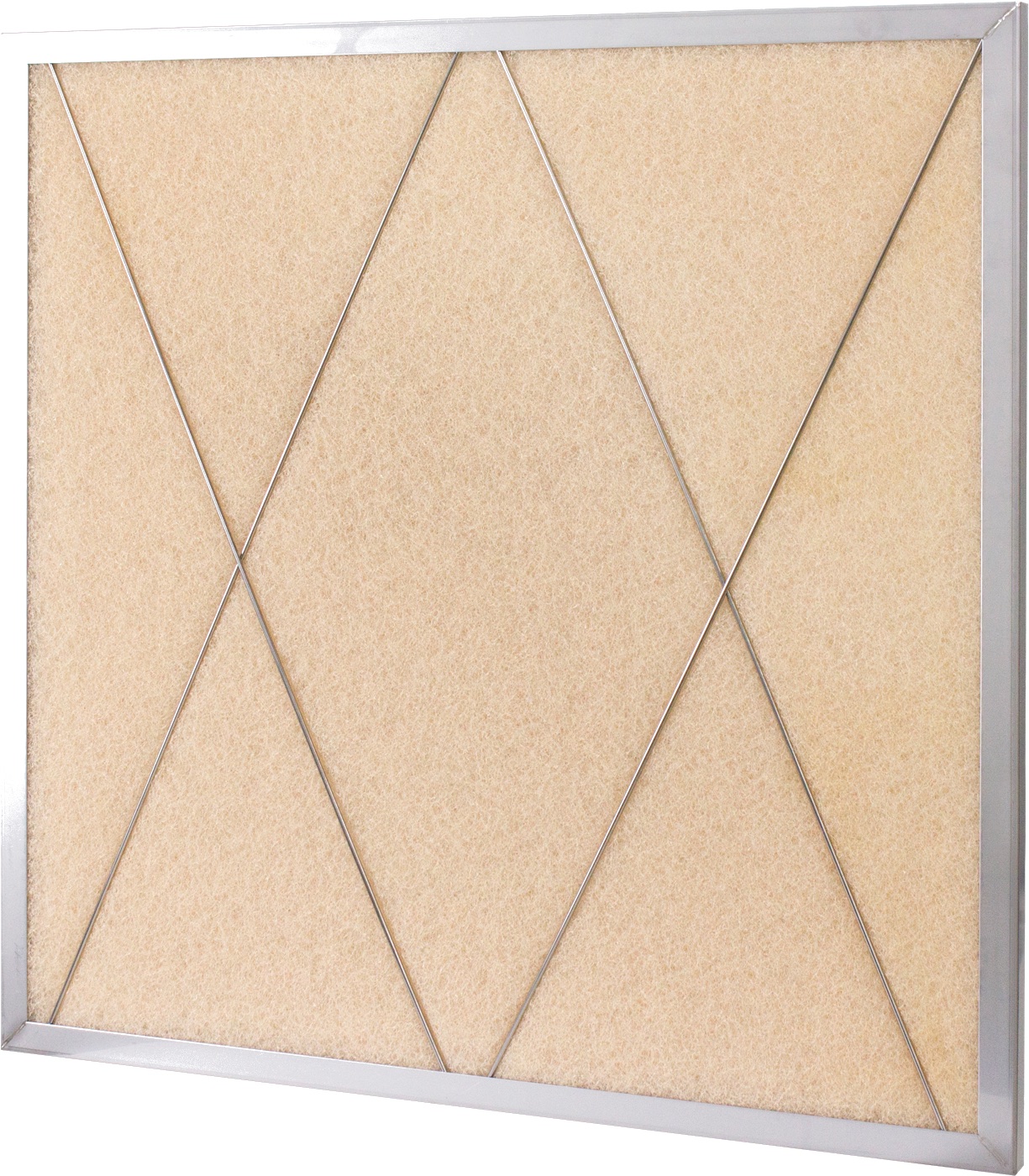

AI-100 High Temperature Resistant Synthetic Fiber Oven Filter (Media)
Descriptions
- HENCOLIN’s synthetic fiber cloth is made up with low pressure drop, which is durable under the high temperature at 200°C, and its max temperature resistance can be around 240°C compared to the traditional filter fabrics. It can remove dust, cigarette ashes and iron rust, etc. and avoid the contamination on the product surface in the process of dry.
Specifications
- Media: Synthetic fiber (nonwoven)
- Color: Brown
- Max. Temperature: 240°C
- Efficiency: G4/MERV8 (90%@arrestance)
- Frame: Aluminum, galvanized iron or stainless steel
- Thickness: 20 mm
- Size: 500x500x20 mm
- Initial pressure drop: 45 Pa
- Recommended final pressure drop: 250 Pa
Advantages
- High temperature resistance
- Flame retardant
- High dust holding capacity
- High airflow & low pressure drop
- Easy to install
Applications
- The synthetic fiber high temperature resistant filter media is suitable for being applied on drying ovens, chemical plants, pharmaceutical plants, paint spray booth, etc.
For More Information and Custom Services, Please Feel Free to Contact Us.
