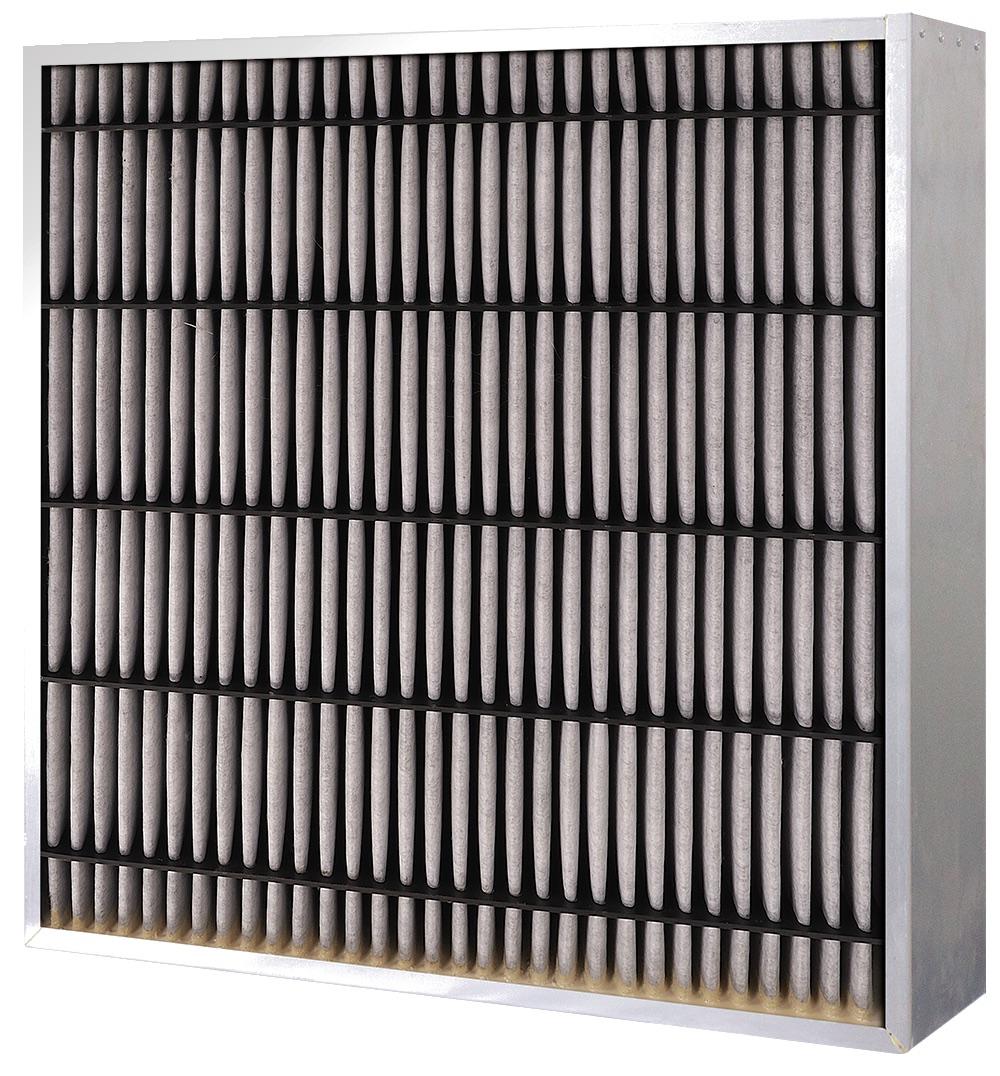

Chemical Filters

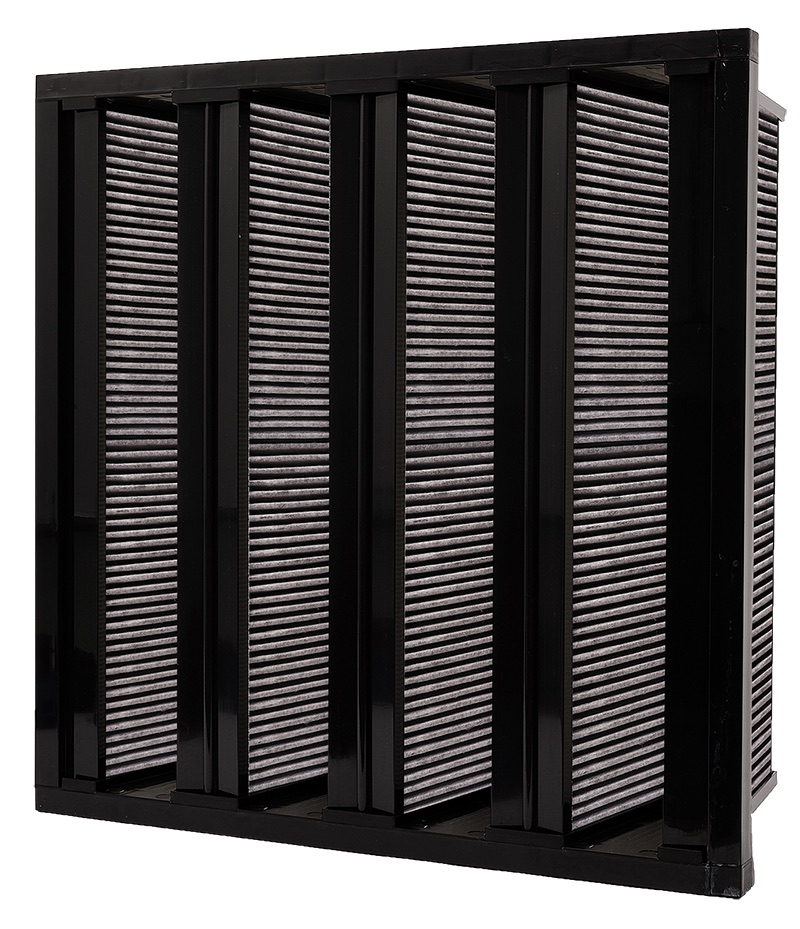

V Bank Gas Phase Filters
Specifications
- Frame: Galvanized, Plastic
- Media: Carbon loaded non-woven
- Basis Weight: 3200 g/m2±10%
- Max. Temperature: ≦ 40°C
- Max. Humidity: ≦ 70% RH
- Air permeability: > 100 cc/cm2/sec. (ASTM D737)
- Carbon Loading: Avg. 1500g/m2 ± 10%
- Thickness: 22 mm ± 5%
Advantages
- High contamination removal efficiency
- Odors control for demanding IAQ applications
- Available in a variety of styles to fit your HVAC retrofit needs
- Low pressure drop
- High carbon Loading
- High air permeability
- Excellent polishing filters where high contaminant concentrations are involved
- Media options for improved removal of specific gases, such as ammonia & amines acid gas, VOCs
Applications
- High Efficiency GAS PHASE filters are well suited for demanding HVAC applications in office buildings, hospitals, airports and other installations where indoor air quality problems can be found. The filters are offered in a variety of standard size which will easily fit into most existing HVAC units and new construction.
